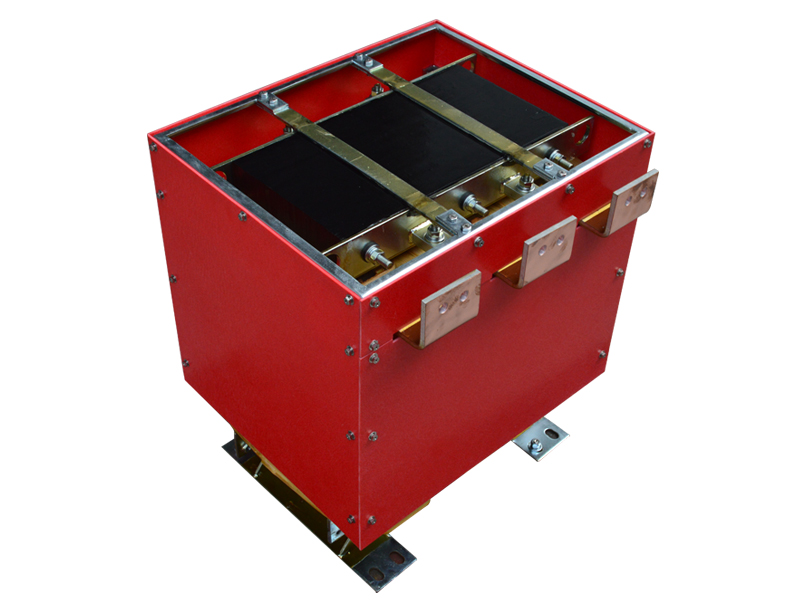

Wind electric reactor

1. products use low loss materials, with high output conversion efficiency.
2. products have high load capacity, in the photoelectric conversion has the role of isolation power, can work in the outdoor high temperature environment for a long time normal work.

咨询我们 0755-27139706

详细介绍

1. products use low loss materials, with high output conversion efficiency.

2. products have high load capacity, in the photoelectric conversion has the role of isolation power, can work in the outdoor high temperature environment for a long time normal work.

Technical parameters of wind electric reactor
	Item	Standard Value	Condition
1	Inductance value	0.1mH-10mH
2	Current range	＜1000A
3	Insulation resistance	＞100MΩ	DC1000V
4	Dielectric strength	＜10mA	AC3KV 60s
5	Noise	≤65dB	1m away from transformer
6	Temperature rise	≤100K	Full load, self cooling
7	Insulation class	Class H (180℃)
8	Ambient temperature	-40℃ - 50℃
9	Design standard	GBT10229

The application field of wind electric reactor:

Wind power
