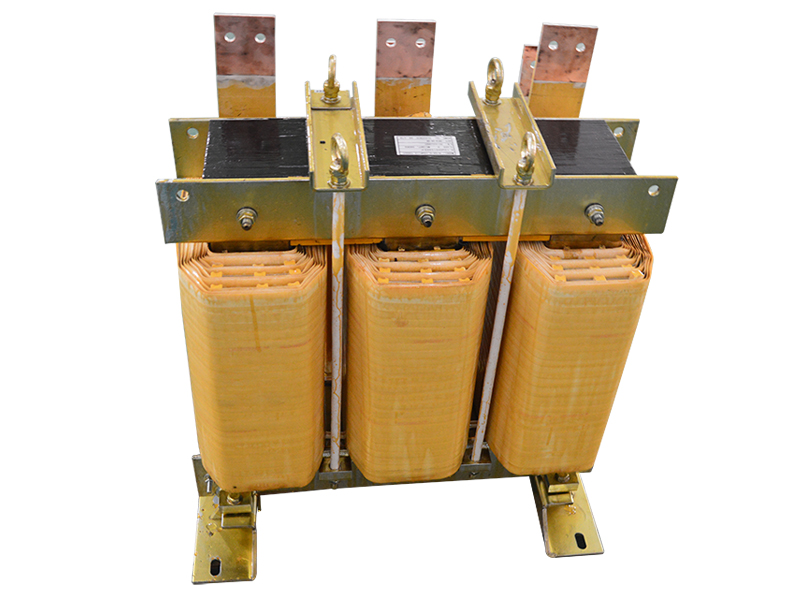

Photovoltaic reactor

1. products use low loss materials, with high output conversion efficiency.
2. products have high load capacity, in the photoelectric conversion in the role of isolation power, can be in the room
Long term normal work in the external high temperature environment.

咨询我们 0755-27139706

详细介绍

1. products use low loss materials, with high output conversion efficiency.

2. products have high load capacity, play the role of isolating power in the photoelectric conversion, and can work in the outdoor high temperature environment for a long time

Technical parameters of photovoltaic reactor
	Item	Standard Value	Condition
1	Inductance value	0.1mH-10mH
2	Current range	＜1000A
3	Insulation resistance	＞100MΩ	DC1000V
4	Dielectric strength	＜10mA	AC3KV 60s
5	Noise	≤65dB	1m away from transformer
6	Temperature rise	≤100K	Full load, self cooling
7	Insulation class	Class H (180℃)
8	Ambient temperature	-40℃ - 50℃
9	Design standard	GBT10229

Application field of photovoltaic reactor:

Photovoltaic system
