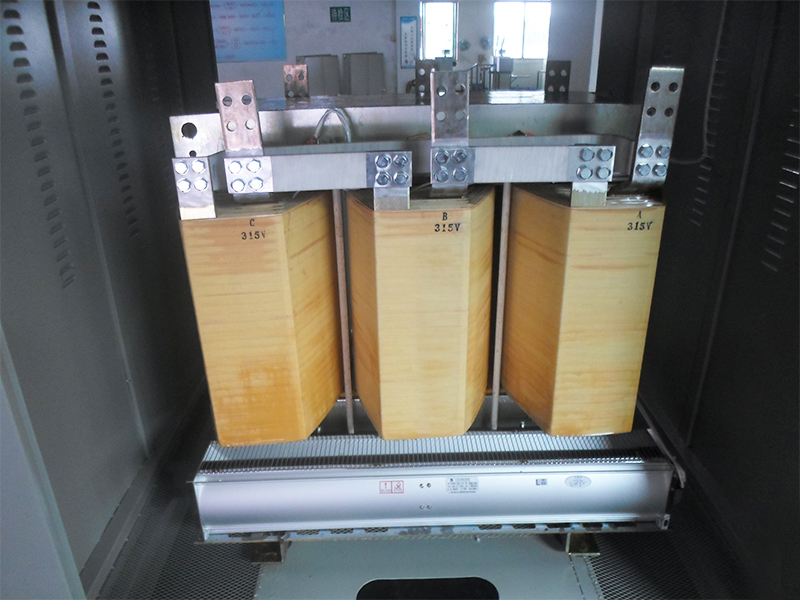

Large test platform isolation transformer

1.The product features large output power, high output current, low temperature rise and low noise.
2.The product acts as isolation transformer in test platform.

咨询我们 0755-27139706

详细介绍

Product description:

1.The product features large output power, high output current, low temperature rise and low noise.

2.The product acts as isolation transformer in test platform.

Technical parameters:

Technical Parameters of Isolation Transformer for Large Test Platform
	Item	Standard Value	Condition
1	Capacity	100KVA-3000KVA
2	Voltage range	＜1000V
3	Insulation resistance	＞100MΩ	DC1000V
4	Dielectric strength	＜30mA	AC3.0KV 60s
5	Efficiency	≥98%	Full load
6	Noise	≤70dB	1m away from transformer
7	Temperature rise	≤125K	Full load, forced air cooling
8	Insulation class	Class H (180℃)
9	Connection mode	Dyn11
10	Short-circuit impedance	4%
11	Ambient temperature	0℃ - 35℃
12	Design standard	GBT10228

Technical Parameters of Reactor for Large Test Platform
	Item	Standard Value	Condition
1	Inductance value	0.1mH-10mH
2	Current range	＜3000A
3	Insulation resistance	＞100MΩ	DC1000V
4	Dielectric strength	＜10mA	AC3KV 60s
5	Noise	≤70dB	1m away from transformer
6	Temperature rise	≤125K	Full load, self cooling
7	Insulation class	Class H (180℃)
8	Ambient temperature	0℃ - 35℃
9	Design standard	GBT10229
